Máquina herramienta CNC Guangdong JSWAY Co., Ltd. desde el 2004.
CNC Machining 30-40 Days by JSWAY
Product details of the CNC machining
Product Specification
Nearest port: Nansha, Yantian or Shekou Port in Guangdong Province China
Price term: EXW FOB CIF
Product Information
JSWAY CNC machining is made on advanced production lines and by experienced technicians. As a result of the implementation of a complete quality management system, products meet the most stringent quality standards. The leading and supporting role of CNC machining concept is a magic weapon that inspires Guangdong JSWAY CNC Machine Tool Co., Ltd. to overcome difficulties and advance continuously.

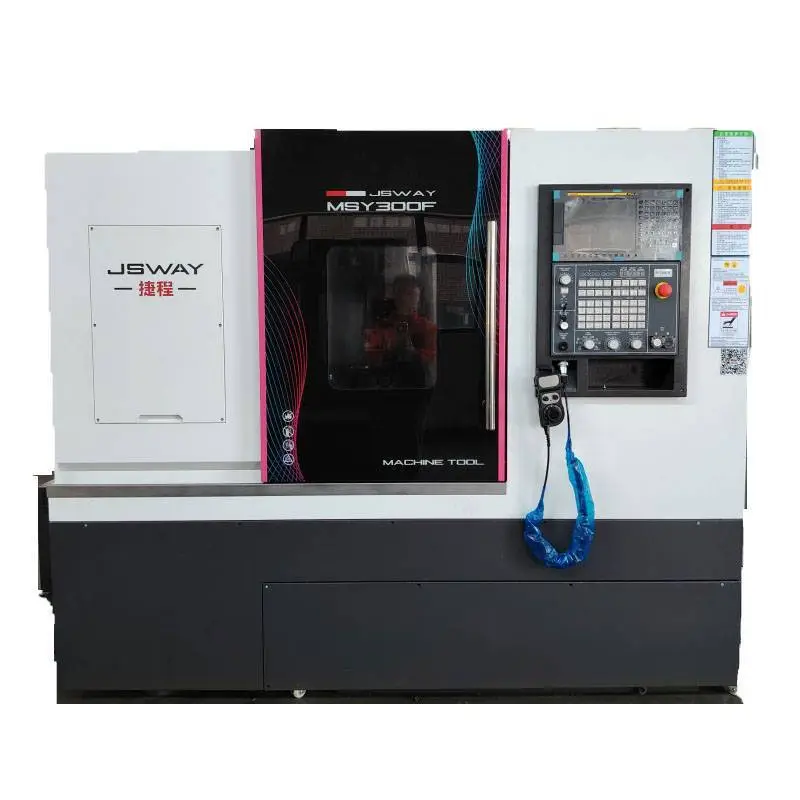

Multi-function lathe
Full functions: carving, turning, milling, drilling, and tapping
Complicated components (work piece) could be done in one go.
| Model No. | MSY300 | MSY300F | |
| Machine | Single spindle + powered turret (with interpolated Y axis) | Single spindle + powered turret (with interpolated Y axis) | |
| AXES | X/YS/Z | X/YS/Z | |
| Operating system | JSWAY customiezed | FANUC | |
| Processing ability | Maximum bar diameter of spindle (MM) | 45 | 45 |
| Maximum bar diameter of sub-spindle (MM) | N | N | |
| Maximum rotation diameter (MM) | N | N | |
| Maximum additive length (MM) | 300 | 300 | |
| Maximum processing diameter (MM) | 400 | 400 | |
| X-axis maximum travel (MM) | 200 | 200 | |
| YS axis Maximum travel (MM) | +-50 | +-50 | |
| Z-axis maximum stroke (MM) | 300 | 300 | |
| X/Z axis fastest movement rate (M/MIN) | 30 | 30 | |
| परिशुद्धता | Repeat positioning accuracy (MM) | 0.005 | 0.005 |
| Motor | Spindle power (KW) | 11 | 11 |
| Spindle speed (RPM) | 4500 | 4500 | |
| Sub-spindle power (KW) | |||
| X-axis servo motor (KW) | 1.8 | 1.8 | |
| Y-axis servo motor (KW) | 1.8 | 1.8 | |
| Z-axis servo motor (KW) | 1.8 | 1.8 | |
| Tools | मात्रा (pieces) | 12 | 12 |
| Others | Total machine power (approximate, KW) | 23.0 | 23.0 |
| Spindle: | |||
| Cylinder: JSWAY customized (inches) | |||
| Demension (LWH, approximate, MM) | 2240x1950x1950 | ||
| तौल (approximate, KG) | 4000 | ||
Company Advantage
• JSTOMI's mechanical equipment has reasonable structure, novel design, stable performance and reliable quality. And our product is convenient to be operated and there is only a little noise while using.
• JSTOMI guarantees the high quality and timely delivery of products, based on multi automated production lines and scientific quality management system. And we are able to provide customers with professional and efficient custom services.
• We have an elite team of professional talents with great overall strength and technical strength, which has laid a solid foundation to improve our comprehensive product strength.
• JSTOMI's CNC machining,CNC Lathe Machine,CNC Lathe Supplier are reasonably-priced and quality-reliable. They enjoy a high market share in the international market.
• JSTOMI was established in We closely follow the development trend as well as adhere to sustainable development in the machinery industry. We are now a professional and powerful manufacturer of machinery.
If you have any questions and comments on JSTOMI, feel free to contact us.
